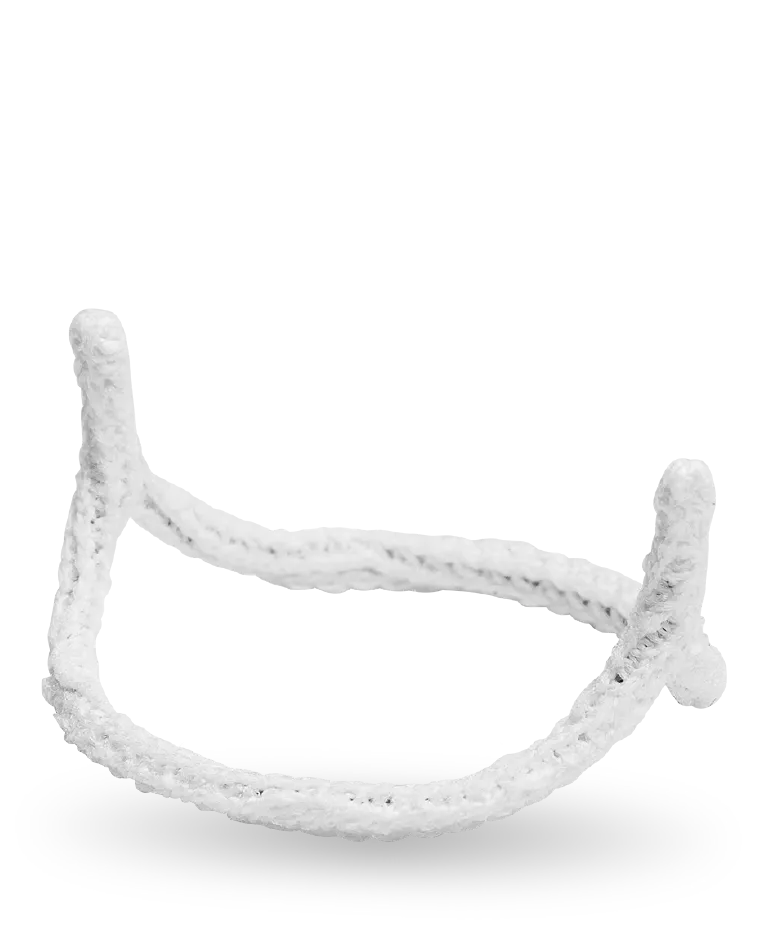

HAART 200

HAART 200AORTIC ANNULOPLASTY DEVICE

Simplifying
Aortic Valve Repair

HAART internal annuloplasty device is designed to restore full 3D annular stability of the aortic annulus. With simplified sizing ensuring optimal leaflet coaptation and annular size restoration, HAART devices can simplify repairs, allowing surgeons to replace only what is necessary.

HAART devices offer a unified repair approach for the many forms of Aortic Insufficiency, both in Bicuspid and Tricuspid valves.

CC-MK-001439 A

Instructions for use Contact us

Aortic valve icon representing internal annuloplasty

Internal Annuloplasty for Bicuspid Aortic Valve

The HAART 200 is the only device for internal annuloplasty and was designed to support symmetric repair of bicuspid aortic valve.

Reduce & prevent annular dilatation
Remodel the valve into a circular, 180° configuration
Establish effective coaptation geometry and simplify leaflet repairs

3D cube icon representing structural stability

3D Stability

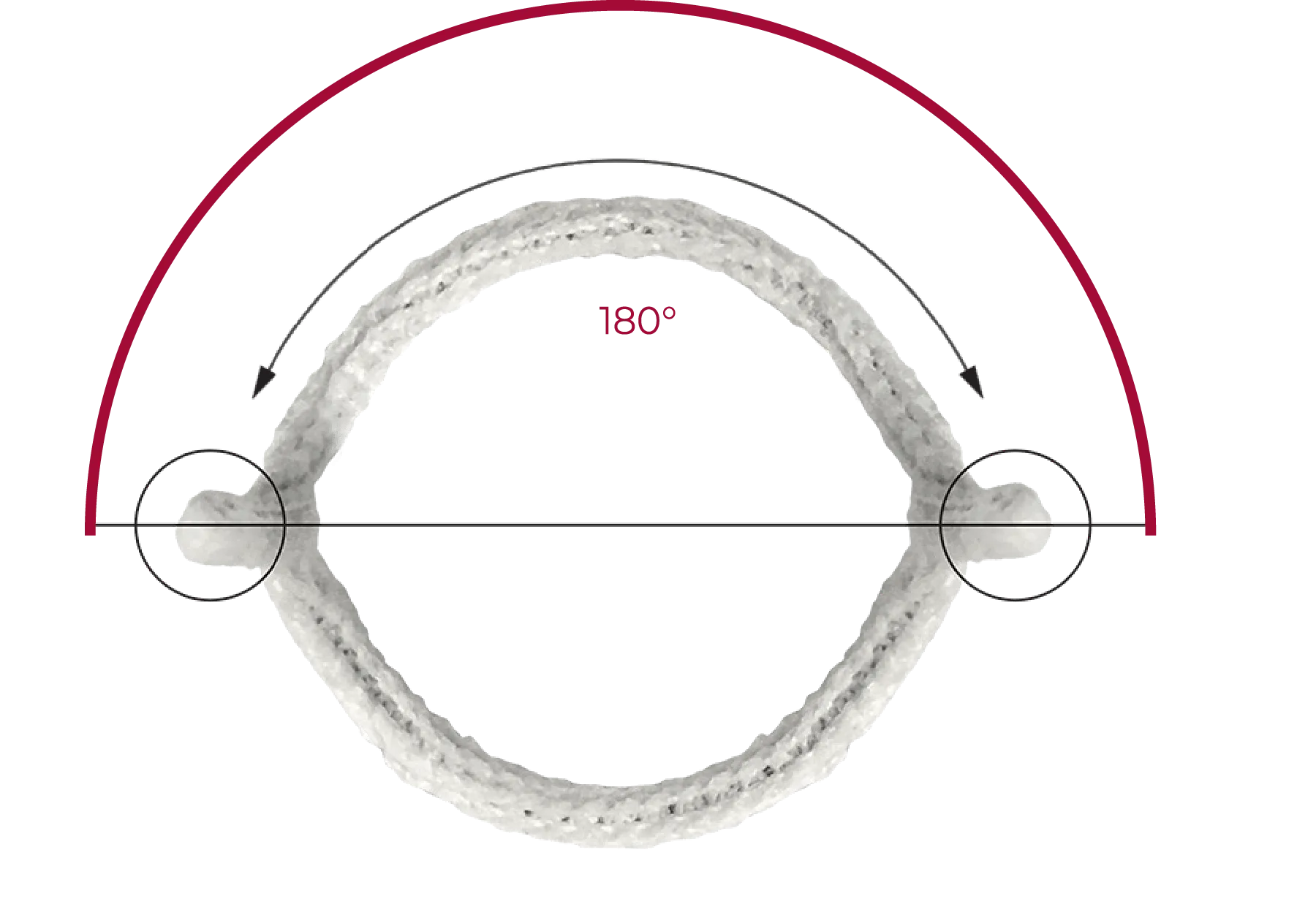

Symmetric repair of bicuspid aortic valves has been shown to be the most durable reconstruction.¹ The HAART 200 devices are designed to create a symmetric repair with the commissures positioned at 180°. The bicuspid annuloplasty devices are sized to maximize the non-fused cusp to comprise half of the valve. The other half of the valve is constructed from the two fused cusps.

CT scan showing HAART 200 device implanted in the aortic annulus, viewed from above, with labeled commissures, non-fused cusp, and right-left fused cusp positioned symmetrically at 180 degrees

The HAART 200 Aortic Annuloplasty Devices help establish effective coaptation geometry and simplify the leaflet repair procedures by:

reducing annular dilatation and drawingthe leaflets toward the midline
remodeling the valve into a circular,180° configuration.²

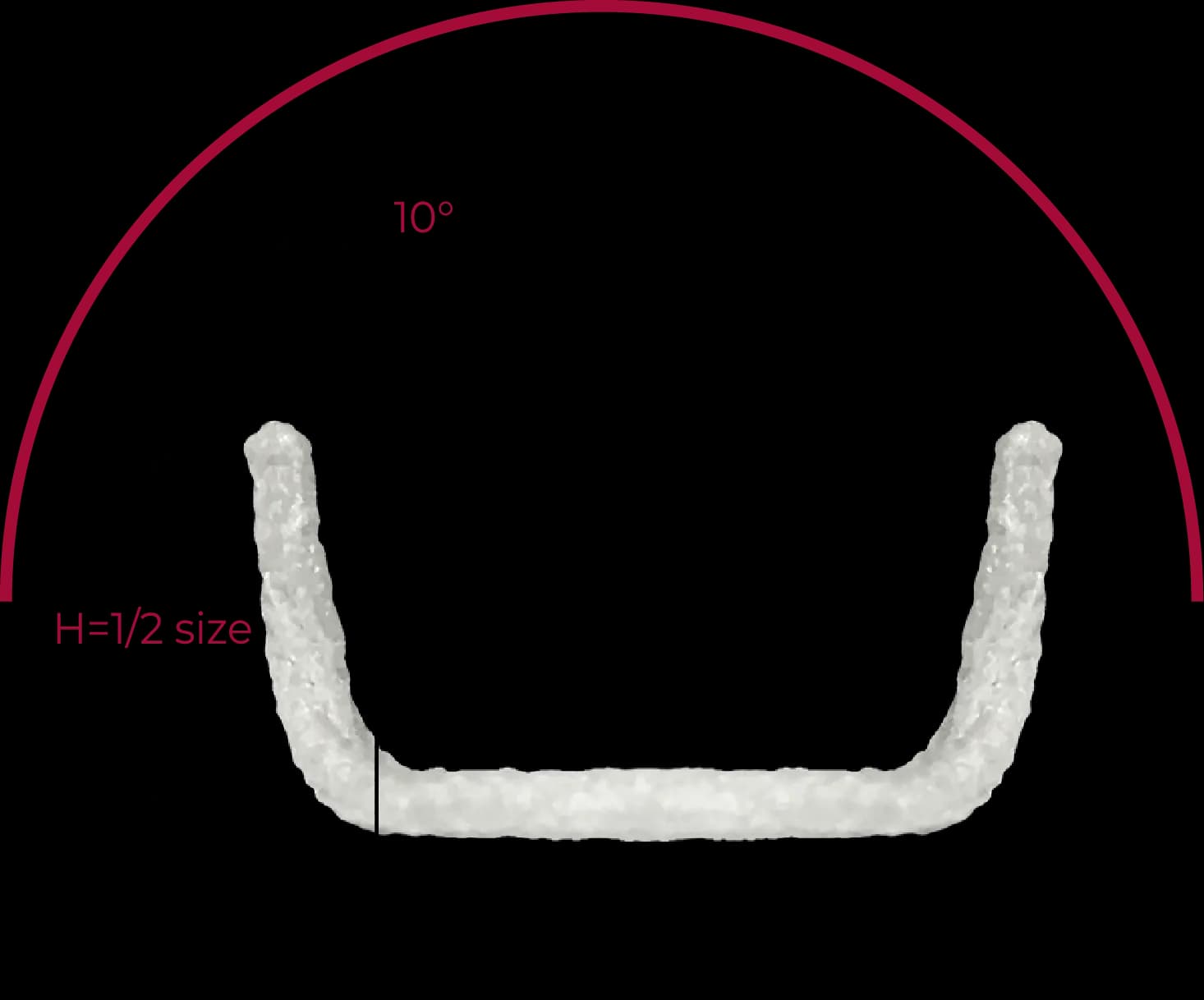

The subcommisural posts of the HAART 200 devices flare outward to mirror normal anatomic geometry and support a wide valve opening with low gradients.
