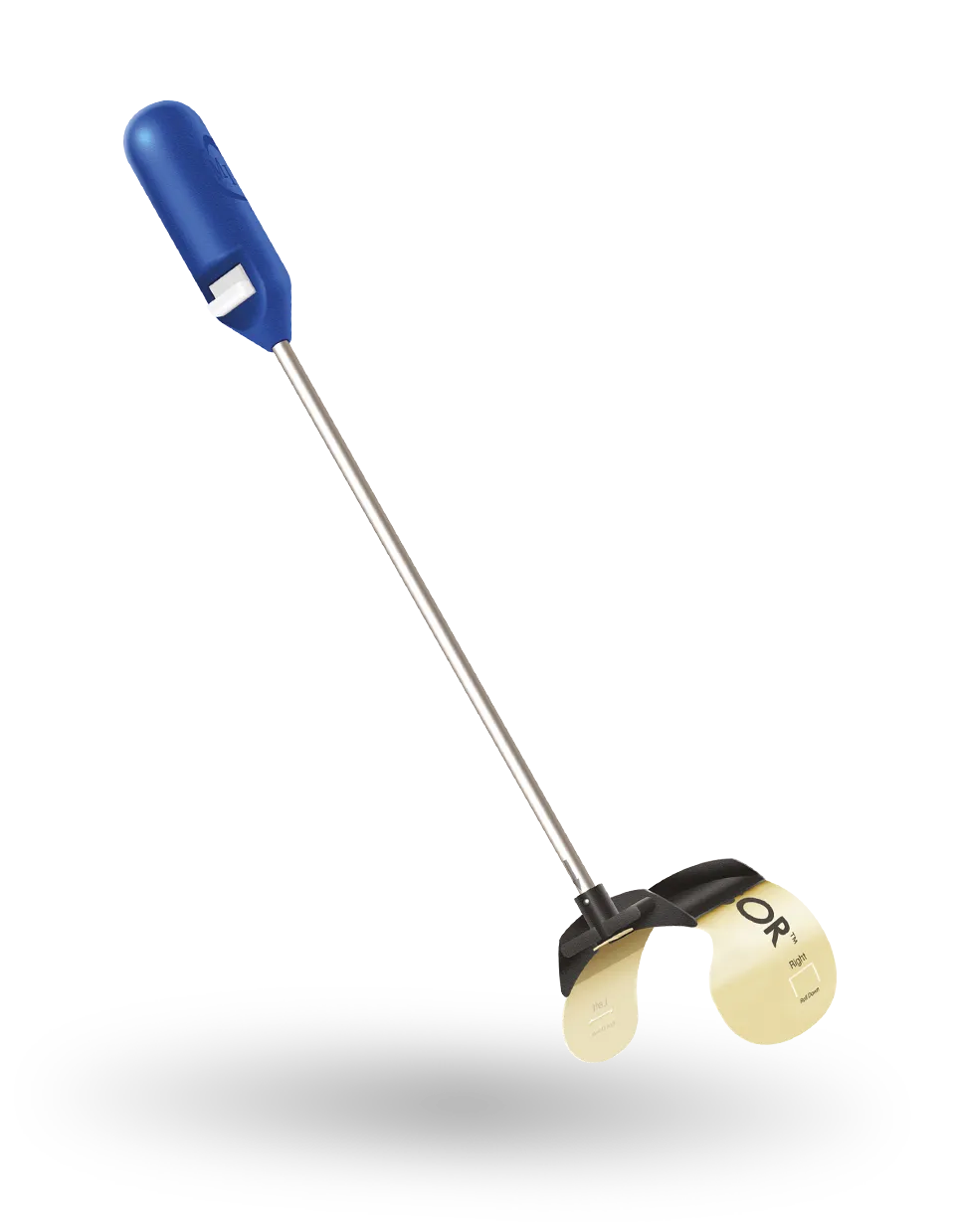

VISOR flexible blade allows for significant lateral and circumferential atrial wall retraction when unfurled1.
The VISOR flexible blade is designed to increase exposure and access with a 250% increase to the retraction surface area in comparison to the S-Blade alone1.
CC-MK-00017-B

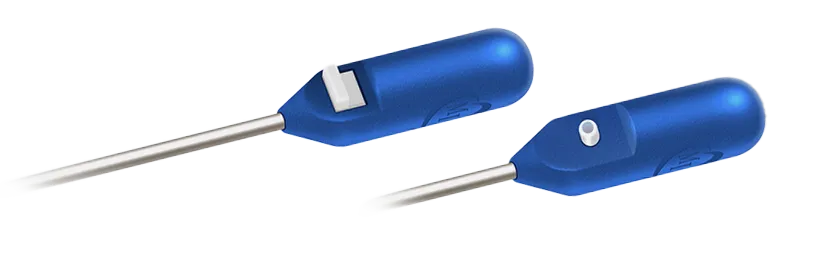

Handle geometry enhances operator grip and instrument control during insertion. Locking pin mechanism facilitates efficient and stable component attachment. Ergonomically located actuator button facilitates efficiency during component engagement and disengagement. Handle incorporated CO2 port reduces clutter within the working field. Designed to provide improved procedural efficiency with handle incorporated CO2 infusion directly to target site.
Handle incorporated CO2 port reduces clutter within the working field. Designed to provide improved procedural efficiency with handle incorporated CO2 infusion directly to target site.

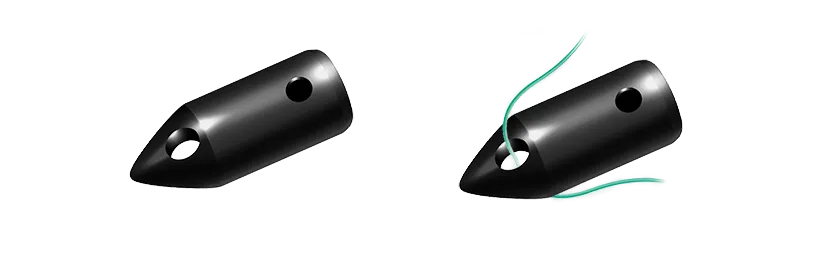

Tapered tip facilitates precise directional control and ease of S-Post insertion. Blunt tip is designed to facilitate advancement of the S-Post through the anatomy while addressing interaction with collateral tissue and structures.
Suture eyelet utilization minimizes the risk of loss in the event of premature disengagement.

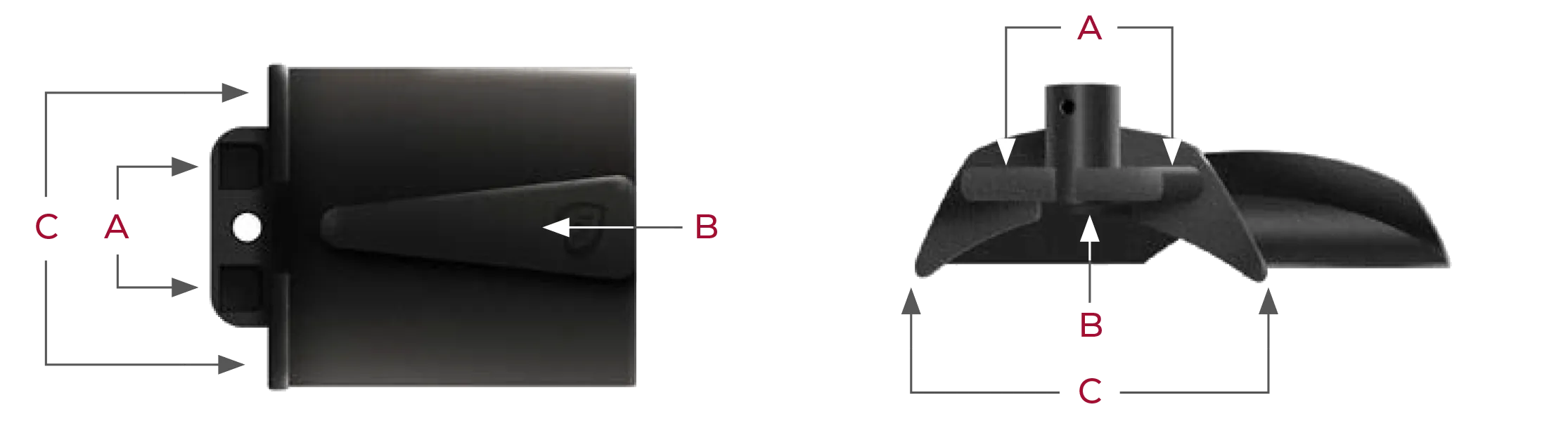

Three size options (small, medium, large) facilitate optimal blade size selection to address anatomical variances1. Universal clamp platform geometry (A) enhances insertion clamp attachment control and stability. Incorporated support bracket (B) and stabilization steps (C) facilitate optimal Visor stability and positioning for maximum exposure.

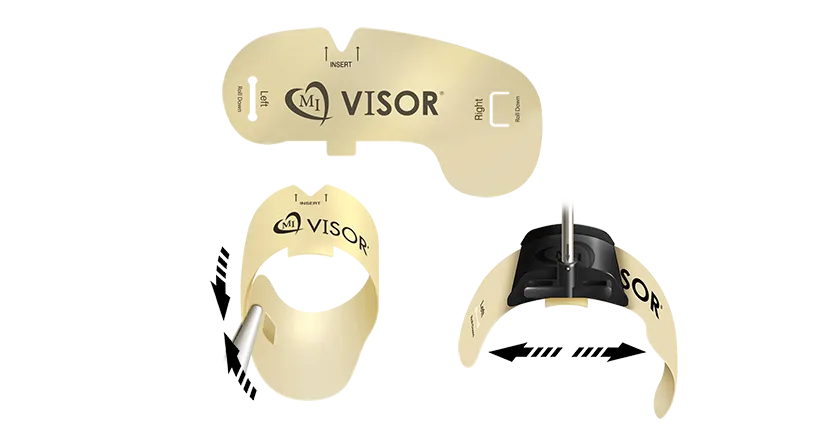

Three sizes (small, medium, large) for use with the corresponding sized S-Blade to facilitate optimal exposure and access 1. Material flexibility allows the device to be rolled during insertion. Printed text facilitates proper rolling orientation for insertion preparation. Remains in rolled orientation when the male and female interlocking cutouts are engaged. Posterior notch and anterior guiding tab facilitate proper alignment and engagement with S-Blade substructure. Wing flexibility is designed to facilitate optimal lateral wall retraction positioning. Material rigidity allows for significant lateral and circumferential atrial wall retraction when unfurled1. Designed to increase exposure and access with a 250% increase to the retraction surface area in comparison to the S-Blade alone.1
